AST-MB-110

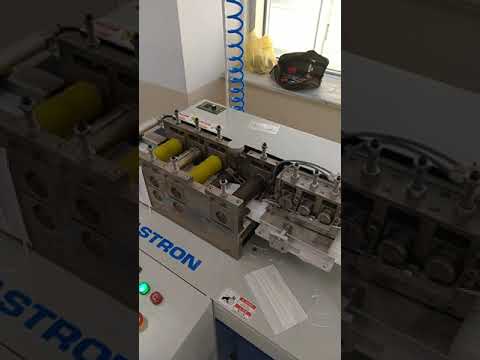

Ultrasonic 3 Layer Mask Folding, Cutting and Combining Automat by Attaching Nose Clips Simultaneously

Technical Specifications

  • Dimensions (Gross) : L3,5 X W0,9 X H 2 m.

  • Frequency : 15 KHZ

  • Capacity Max. : 110 ad./dk. - pcs/min

  • Working Widht : 95 X 175 mm ± 3 mm

  • Elec. Source : 220VAC / 2,5 KW 15A

  • Output Power : 1400 W - 1.5 KW/h

  • Air Requirement : 6 - 8 Bar - 75 L/min

  • Net W. : 600 kg

  • Gross W. : 650 kg

Features

  • Digital controlled ultrasonic system

  • Special designed device system for production of 3 layer non-woven mask

  • Wire control sensor system

  • Interlining control sensor system

  • Digital forward-backward feature

  • Lcd touch screen

  • Programmable ultrasonic frequency setting

  • Programmable ultrasonic power setting

  • Special roller and rollerblade design

  • High productivity, high quality, easy adjustment

Sectors

  • APPAREL

Product Brochure

Request an Offer

First of all thank you for your interest in our products. If you fill in our offer form, we will get back to you as soon as possible. We hope your investment will be beneficial.
