AST-3578-64-ACA-K

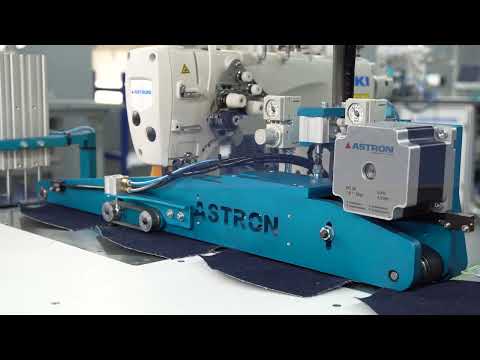

Two Needle Pocket Hemming Automat (Lockstitch)
Technical Specifications
Stitch Length : 1.4 mm to 4.0 mm
Standart Needle Gauge: : 1/4” (6,4 mm)
Optional Needle Gauge : 4.8 - 7.2 - 9.0 mm
Sewing Head : Juki LH3588
Motor : Direct Drive EFKA Motor
Voltage : 220 V Single Phase 50 - 60 Hz
Needle System : UY134GAS/NM100-NM140
Capacity : 6. 000 - 7.000 pcs/8 hour
Max. Sewing Speed : 3.000 rpm
Features
Excellent lockstitch quality
Operator friendly LCD touchscreen
Step motor controlled special belt transport system adjustable for fine or thick material
Photocell controlled thread trimming system
Two needle lockstitch sewing head with standard 6,4 mm gauge
Optionally, needle gauge can be chosen as: 4,8; 7,2; 9,0mm
Special rotating stacker system for the sewn pockets
Height adjustable work place
Capacity: 6.000 - 7.000 pcs / 8 hour
Sewing Speed 3.000 rpm / Servo motor technology
Sectors
-
APPAREL
-
Denim / Jeans
Product Brochure
-
AST-3578-64/ACA-K PRODUCT BROCHURE
5.5.2017 15:30:17
CLICK FOR DOWNLOAD (PDF)
